Mfr. Name: Scilogex, LLC
Mfr. Cat No: 813223009999
Temp. Range: Ambient - 550°
Speed. Range: 0 to 1500 rpm

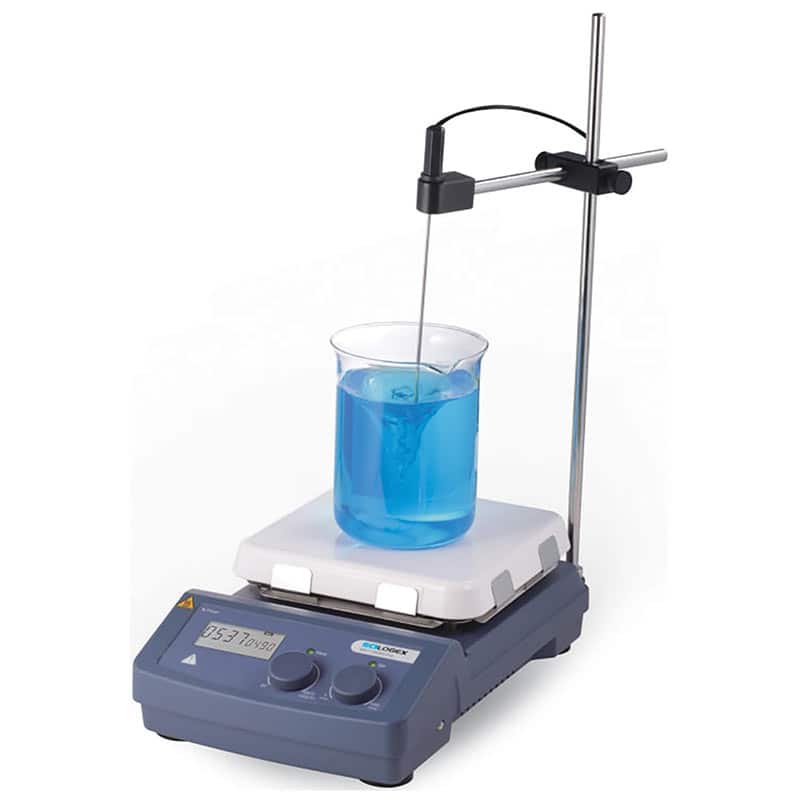

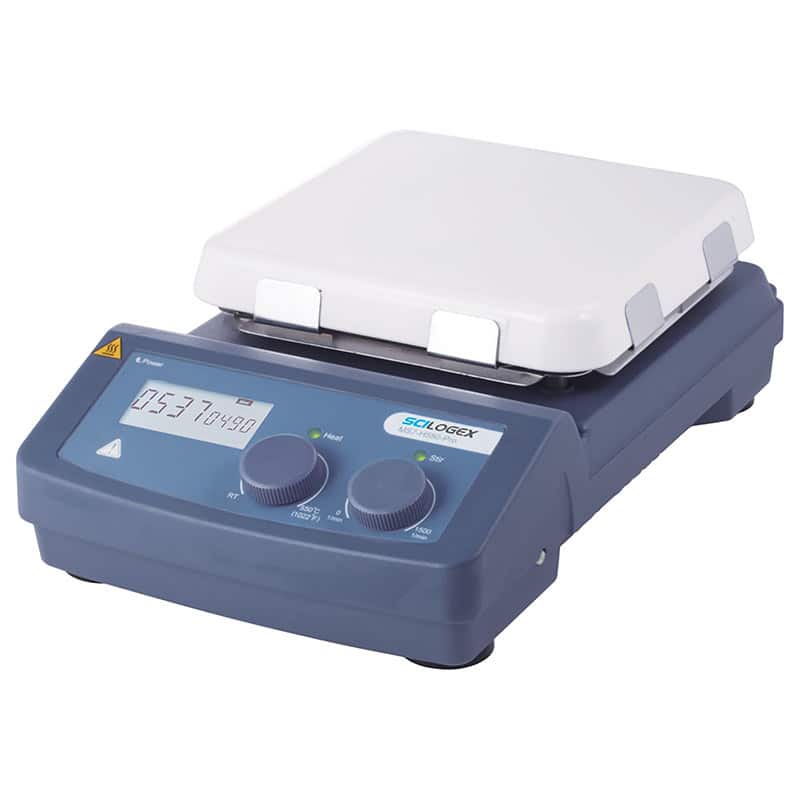

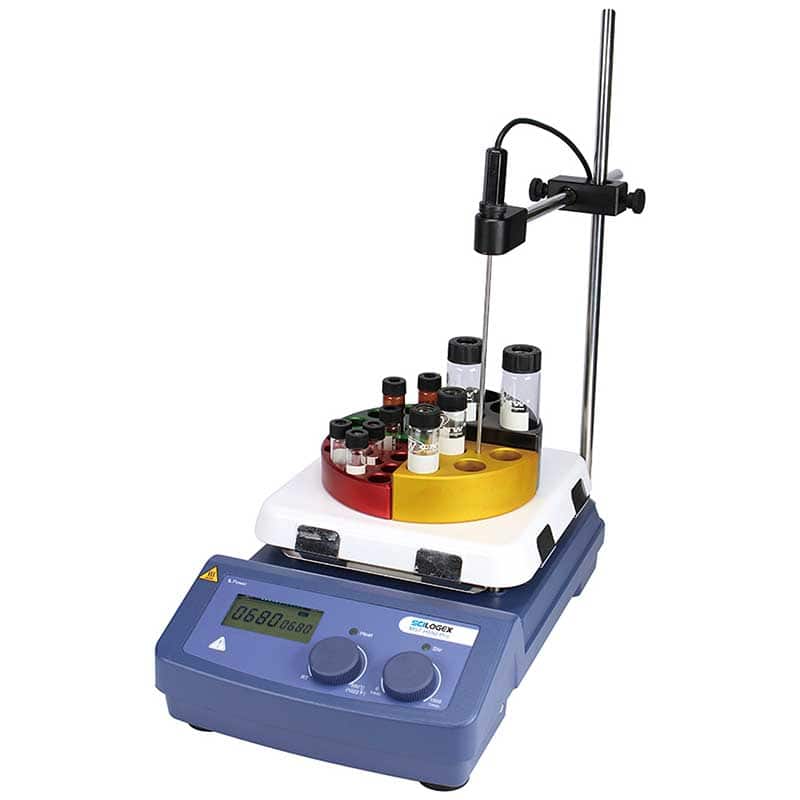

Scilogex Ceramic Hotplate 7x7 Stirrer (SCI550-Pro)
The SCILOGEX SCI550-Pro provides powerful heating and stirring with LCD digital display of the set temperature and real-time temperature display. LCD heating and digital stirring are simply controlled turning the respective control knobs. Includes Free PT-1000 sensor.
Features...
- Includes PT-1000 Sensor for temperature control. And 40mm L x 5mm Dia. Magnetic Stir Bar.
- Easy-to-read independent back-lit LCD displays for heat and stirring.
- Digital speed controlling, max. speed at 1500rpm.
- Built-in PID controller ensures safe heating with overheating protection.
- Heat only, stir only or heat and stir together functions.
- Max. heating plate temperature 550°C.
- Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer.
- RS232 for remote control, providing PC control and data transmission.
- Low temperature stability.
- External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at 0.2°C.
- Electronic speed control for constant speed even during changes in load.
- Maintenance free DC brushless motor for long life and more stirring power.

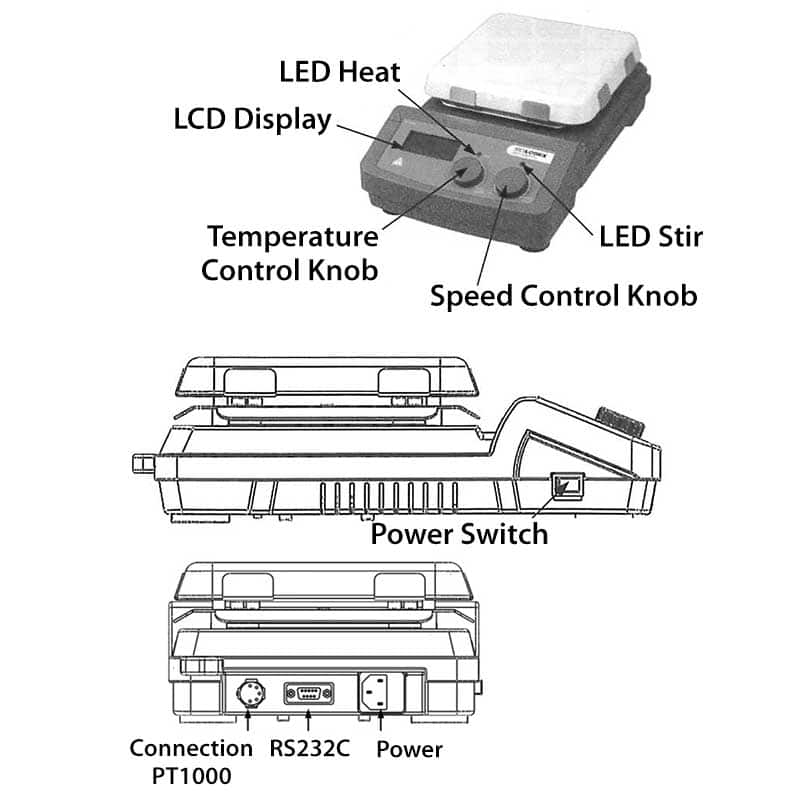

- Two rotating knobs enable easy adjustment of speed and temperature.
- High magnetic adhesion.
- "HOT" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
- cTUVus approved for UL and CSA.
- 2 YEAR WARRANTY.
Hotplate/Stirrer Includes...
- SCI550-Pro stirring hot plate.
- PT-1000 External Sensor
- 1.5 inch (40mm) stir bar.
- Spare fuse.
- Instruction manual.
- Two-year warranty.
Hotplate/Stirrer Specifications...
- Work plate dimension [W x D]: 184x184mm (7 inch)
- Work plate material : Glass ceramic
- Motor type: Brushless DC motor
- Motor input power: 18W
- Motor output power: 10W
- Power: 1050W
- Heating output: 1000W
- Voltage: 100-120/200-240V 50/60Hz
- Stirring positions: 1
- Stirring Capacity [H2O]: 20L
- Max. magnetic bar [length]: 80mm
- Speed range: 100-1500rpm, resolution 1rpm
- Speed display: LCD
- Temperature display: LCD
- Heating temperature range: Room Temp. -550°C, increment 1°C
- Temperature control accuracy: 1°C (100°C)
- Overheating protection: 580°C
- Overheating protection: 0.1°C
- External temperature sensor : PT1000 (accuracy 0.2)
- "Hot" warning: 50°C
- Data connector: RS232
- Protection class: IP21
- Dimension [WxDxH]: 215 x 360 x 112mm
- Weight: 5.3kg
- Permissible ambient temperature and humidity: 5-40°C, 80%R
