Mfr. Name: Scilogex, LLC
Mfr. Cat No: 80301321159999-B
Temp. Range: Ambient to 500°C
Speed. Range: 100 to 1500 rpm

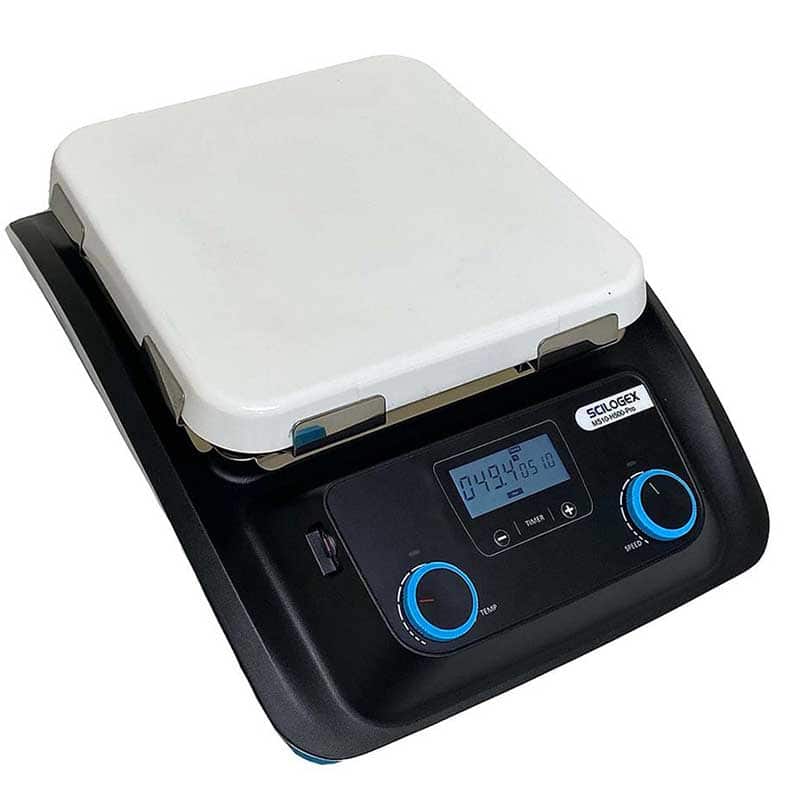

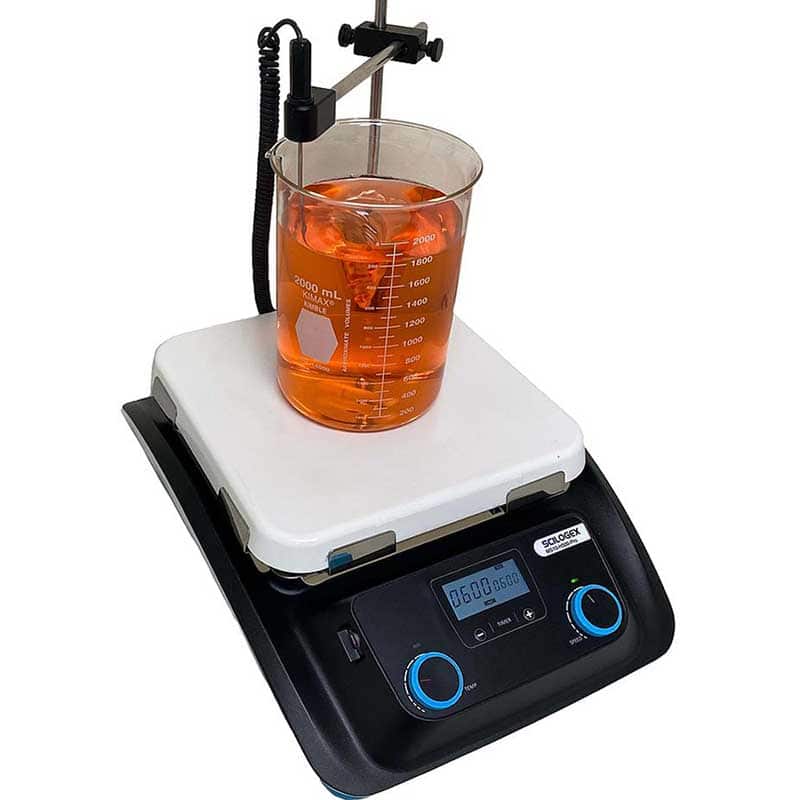

Scilogex Ceramic Hotplate 10x10 Stirrer (SCI500HS-Pro)
The SCILOGEX SCI550-Pro provides powerful heating and stirring with LCD digital display of the set temperature and real-time temperature display. LCD heating and digital stirring are simply controlled turning the respective control knobs. Includes PT-1000 sensor and support stand.
Features...
- Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
- Glass ceramic work plate provides excellent chemical resistant performance and efficient heat transfer.
- LCD display for precise monitoring of speed and temperature. Liquid temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C.
- Digital speed control of 100~1500 rpm
- Max. heating plate temperature 500°C
- The "Hot" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
- Free SD card records the instrument's running data in real time.
- Timing function: the run time of the instrument can be set.
Hotplate/Stirrer Includes...
- SCI500HS-Pro stirring hot plate.
- PT-1000 External Sensor & Stand.
- SD Card Reader.
- Stir Bar, 2 inch.
- Spare 20 amp Fuse.
- Instruction Manual.
- Two-year Warranty Card.
Hotplate/Stirrer Specifications...
- Work plate Dimension[WXD]: 254 x 254mm (10 inch)
- Work plate material: Glass ceramic
- Motor type: Brushless DC motor
- Stirring positions: 1
- Max. Stirring quantity, [H2O]: 30L
- Max. Magnetic bar [length]: 80mm
- Speed range: 100 - 1500rpm resolution ±1rpm
- Speed, Time, Temperature display: LCD
- Timer display: 1min - 99h 59min
- Heating Temperature range: Room Temp. -500°C, increment 1°C
- Temperature control accuracy: ±1°C (<100°C) ±1% (>100°C)
- Overheating Protection(°C): 540
- Temperature Display Accuracy: ±0.1°C
- External temperature sensor: PT1000 (accuracy ±0.2)
- "Hot" warning (°C): 50
- Data Connector: SD Card
- Protection Class: IP21
- Power: 1400W
- Heating output (W): 1350
- Voltage, Frequency: 100 - 120 / 200-240V 50 / 60Hz
- Dimensions [WxDxH]: 328x424x138mm
- Weight : 16 lb (7.18kg)
- Permissible Ambient Temperature and Humidity: 5-40° C, 80%RH
