Mfr. Name: JOANLAB®
Mfr. Cat No: HS5C
Max Stir Capacity: 2L (H2O)
Temp. Range: Ambient to 280°C
Speed. Range: 50 to 1500 rpm

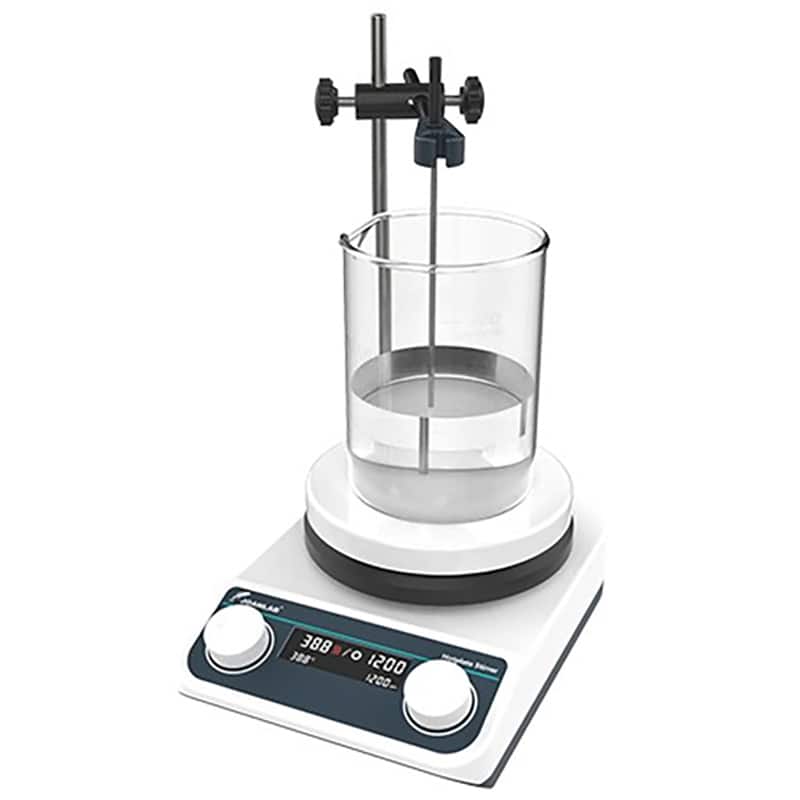

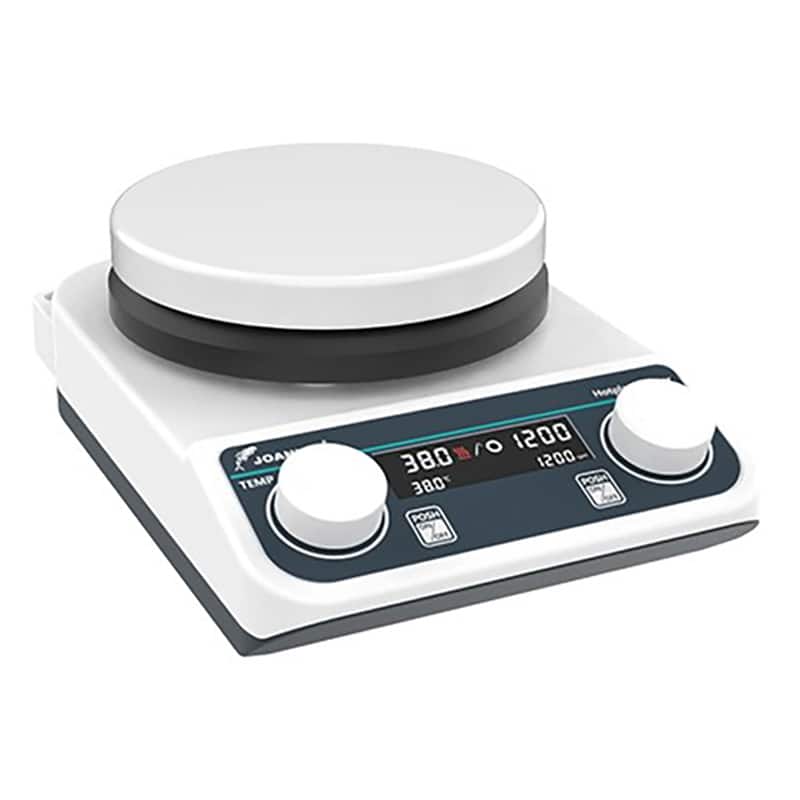

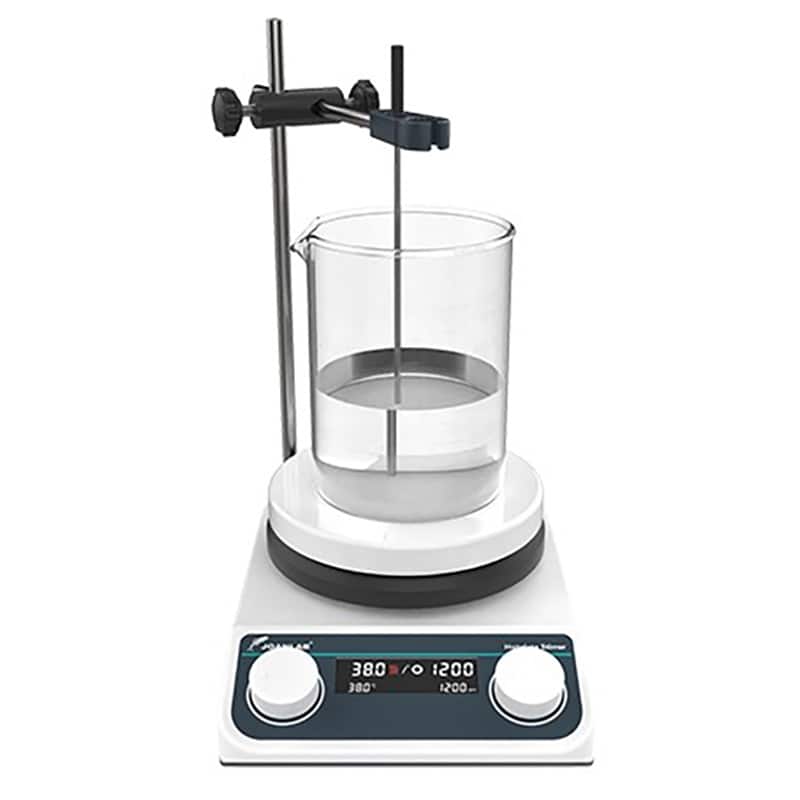

JOANLAB HS5C Ceramic Hotplate 2L Stirrer
The JOANLAB HS5C hotplate-stirrer is a very economically priced LED digital hotplate-stirrer ideal for temperatures below 280°C. This compact unit can be used as a hotplate, stirrer or combination. Includes external sensor and the sensor support rod and clamp.
Features...
- Heat only, stir only or heat and stir together functions.
- Digital temperature control with max. temperature up to 280°C.
- Digital speed control with max. speed up to 1500rpm.
- Stainless steel work plate with ceramic coating provides good chemical resistant performance and easy cleaning.
- LED display shows temperature and speed.
- External temperature control is possible by connecting the temperature sensor (PT1000).
- Hotplate temperature is shown when no external probe is attached.

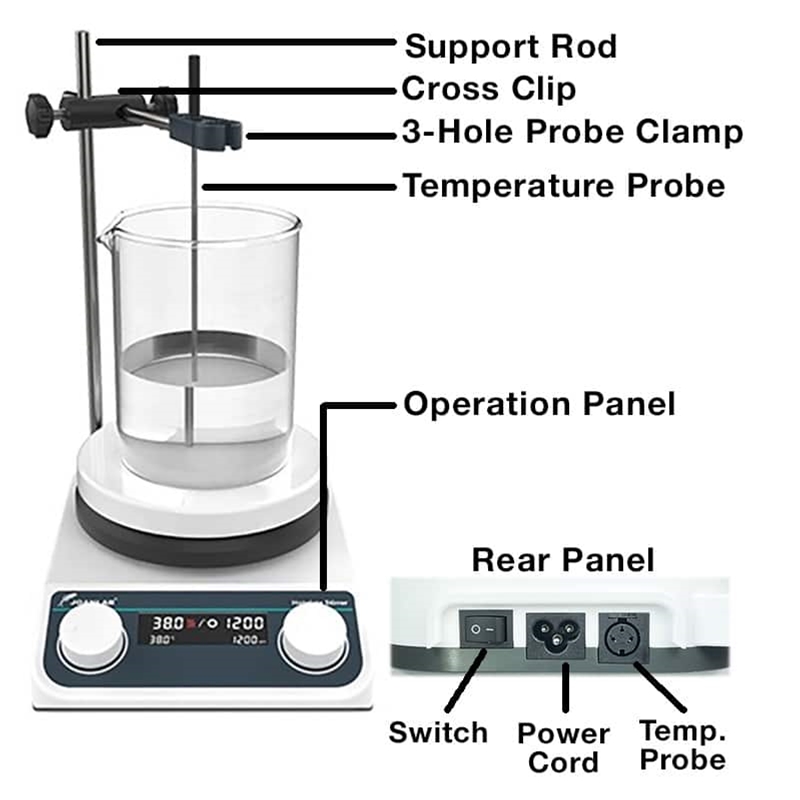

- Three-hole probe clamp. Can hold temperature probe, PH meter, acidity meter, etc.
- Rubber feet prevent "walking".
Specifications...
- JOANLAB Part No.: HS5C
- Includes:
- PT1000 Sensor
- PT1000 Sensor support rod & clamp.
- Work plate dimension: 135mm (5 inch) dia.
- Work plate material : stainless steel cover with ceramic
- Motor type: Brushless DC motor
- Power: 300W
- Voltage: AC 110V
- Stirring positions: 1
- Max. stirring quantity: 2L
- Stirring direction: Counterclockwise
- Speed range: 50-1500rpm
- Speed display: LED
- Temperature display: LED
- Speed display resolution: 10rpm
- Heating temperature range: Room Temp. to 280°C, increment 1°C
- Stir bar size: 30mm
- External temperature sensor: PT1000
- Dimension [WxDxH]: 155x255x90mm
- Weight: 2.35lb. (1kg)
Using your JOANLAB Model HS5C Hotplate/Stirrer
- Turn on the power using the rocker switch on the back of the unit.
- Rotate the left knob to set desired temperature.
- Rotate the right knob to set the desired speed.
- Press either knob to start. Heating and stirring will commence.
Note: If no heating is desired, rotate left knob to zero (----°C). For no stirring, rotate right knob to zero (----rpm).
To readjust temperature or speed setting while the unit is running, press either knob to pause. Then rotate temperature and/or speed knob to new desired setting. Restart by pressing either knob again.
For most accurate temperature control, employ included stainless steel temperature probe.
